self aligning welding roller

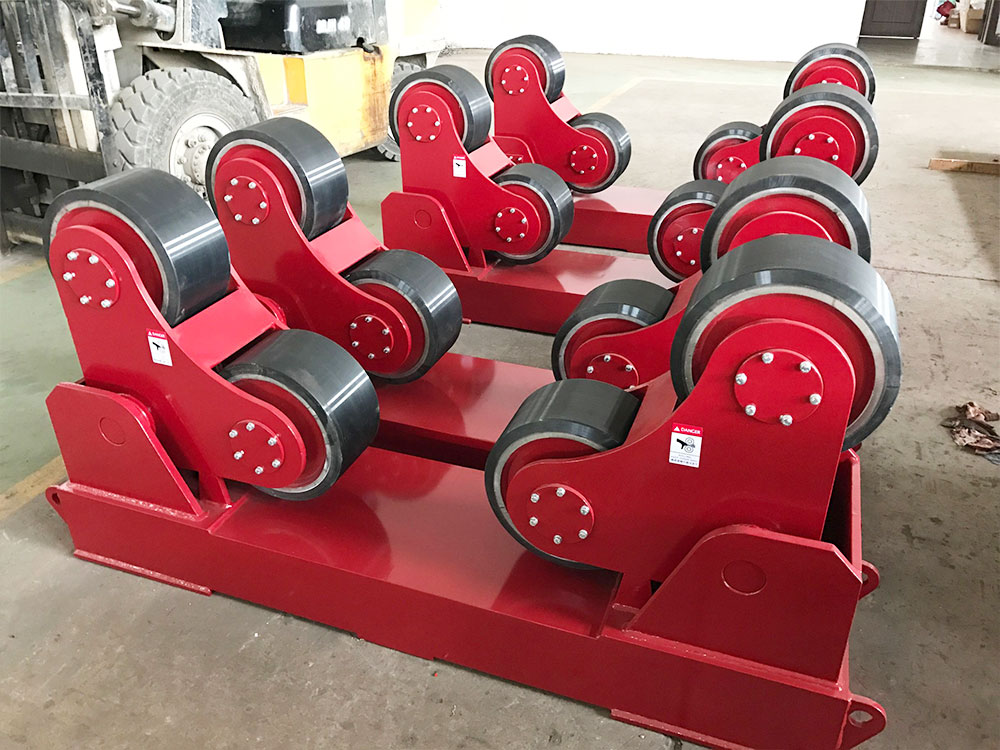

10T Self Aligning Rotator

10T Self Aligning Rotator
10T Self Aligning Rotator



     Load capacity – Drive

     5 tons maximum

     Load capacity – Idler

     5 tons maximum

     Load capacity – Set

     10 tons maximum

     Rotation capacity

     10 tons maximum

     Vessels diameter

     Min. 320mm ~ Max.2800mm

     Rotation speed

     100~1000 mm/min VFD

     Rotation power

     1.1kw with fan cooling

     Roller wheels

     PU (Polyurethane wheels)

     Control way

     Remote hand control + Foot pedal

     Input Voltage

     110V ~ 575V Single/3 Phase 50/60Hz


     CE approval

Price only: US $3,***.00

 Welding Rotator For Winder Tower Products Features:

1. One drive piece roller & one idler piece roller are packaged together as one set for sale.

2.Self adjustment for different diameter vessels without manual adjust, more convenient.

3.Stepless adjustable speed of the driven part with rotation speed 100~1000mm/min .

4.The rollers wheel can be customized in PU/RUBBER/STEEL material

5. Voltage  110V – 600 V 50 / 60 Hz 1P / 3P all available,and drive rotation speed is in digital readout

6.100% new from original manufacturer – WUXI WELDSUCCESS AUTOMATION EQUIPMENT CO., LTD

Pressure Vessels Welding Roller Beds Competitive Advantage:

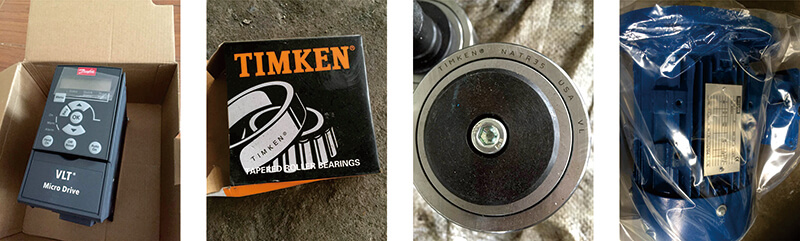

1. All our pipe  welding  rotators inverter is from Danfoss/Yaskawa

2. All our tank welding rollers motor is from UK Invertek.

3. All our tank turning rolls electronic components is from Schneider.

4.VFD rotary speed control, improving the reliability of operation.

5.This self aligning welding rotator accept special design and custom.

Our Products Name

pipe welding roller ,  pipe turning rolls, pressure vessls welding, pipe welding roller stand,  pipe turning rolls, tube turning rolls, fit up rotator, self-aligned pipe welding roller, self-aligning pipe welding roller stand, self adjustable pipe welding roller stand, self aligned roller stand,  roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional pipe welding roller stand, bolt adjustable pipe welding roller stand, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station.
